Product Details
This Water Pump Rebuild Kit – Fits Johnson/Evinrude 60-75 HP (Replaces 432955, 438597) provides all necessary components to restore the cooling system on Johnson/Evinrude 60-75 HP 3-Cylinder engines from 1979–2001, including 60-70 HP 4-Stroke models from 1998-Up.
It serves as a direct replacement for Sierra 18-3389, Full Power Plus 432955, WINGOGO 0432955, Titan 757 432955, JLM Marine 432955, and CSDEX 13212377.
- Installation Location: Mounts in the lower unit / gearcase.
- Complete Assembly: Includes a full housing assembly with a 6-blade impeller.
- Engine Compatibility: Designed for both 2-Stroke and 4-Stroke applications.
Part Number Matrix
Use this matrix to confirm equivalent references across OEM and aftermarket.
| Brand | Part Number |
|---|---|
| Johnson / Evinrude (OEM) | 432955 |
| Johnson / Evinrude (OEM) | 438597 |
| Sierra | 18-3389 |
| Full Power Plus | 432955 |
| WINGOGO | 0432955 |
| Titan | 757 432955 |
| JLM Marine | 432955 |
| CSDEX | 13212377 |
Engine & Model Compatibility
Confirm your engine model/year in the table below.
For Johnson / Evinrude engines, this kit fits select 3-cylinder models from 60 to 75 HP manufactured between 1979 and 2001, including later 4-stroke versions.
| Brand | Model | Rated HP | Stroke | Years | OEM Part No. |
|---|---|---|---|---|---|
| Johnson / Evinrude | 3-Cylinder | 60 | 2-Stroke | 1989–2001 | 432955 |
| Johnson / Evinrude | 3-Cylinder | 60 | 4-Stroke | 1998-Up | 432955 |
| Johnson / Evinrude | 3-Cylinder | 65 | 2-Stroke | 1979–2001 | 432955 |
| Johnson / Evinrude | 3-Cylinder | 70 | 2-Stroke | 1979–1994 | 432955 |
| Johnson / Evinrude | 3-Cylinder | 70 | 4-Stroke | 1998-Up | 432955 |
| Johnson / Evinrude | 3-Cylinder | 75 | 2-Stroke | 1979–1988 | 432955 |
Technical Specs
- Product Type
- Water Pump Impeller Rebuild Kit
- Installation
- Lower Unit / Gearcase
- Housing Material
- Metal (Housing) / Plastic (Components)
- Housing Color
- White / Black
- Dimensions
- 190 × 120 × 60 mm (7.48 × 4.72 × 2.36 inches)
- Weight
- 0.52 kg (1.15 lbs)
- Engine Type
- 4-Stroke / 2-Stroke
- Operating Mode
- Electric
- Warranty
- 1 Year (Manufacturer dependent)
- Other Technical Attributes
- Includes complete housing assembly with 6-blade impeller

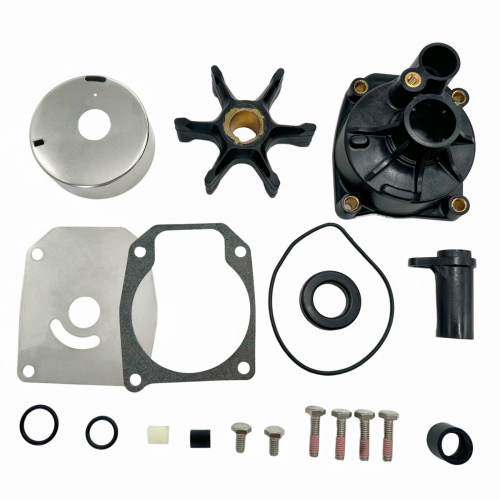

What’s in the Box
- 1 x Water Seal (315748)
- 1 x Insert Cartridge
- 1 x Wear Plate (321940)
- 1 x Water Pump Gasket (336530)
- 1 x Impeller (396725)
- 1 x O-Ring (324981)
- 1 x O-Ring (326649)
- 1 x Pump Housing (435673)
- 1 x Grommet (314008)
- 1 x Key Black (331107)
- 1 x Key White (334897)
- 1 x Damper
- 6 x Bolt (4x 22360, 2x 22320)
Installation Notes
A helpful installation video is available on YouTube from Brandon's Garage, covering this specific kit on 60-70 HP engines. General steps are as follows:
- Disconnect the battery and shift the outboard into neutral.
- Place a drain pan under the gearcase and remove the drain/fill screws to empty the gear oil.
- Remove the bolts securing the lower unit (gearcase) to the upper engine housing and carefully lower it.
- Unbolt and remove the old water pump housing assembly from the driveshaft.
- Clean the mounting surface and inspect the driveshaft for wear.
- Install the new wear plate, gasket, and impeller key. Slide the new impeller onto the driveshaft, turning clockwise.
- Install the new housing, seals, and cartridge, ensuring all components are correctly aligned.
- Bolt the new assembly down to the specified torque.
- Reinstall the lower unit, refill with fresh gear oil, and test the engine using a water source (flusher or test tank).
Troubleshooting & FAQ
How do I know if my water pump is failing?
Common signs include the engine overheating at idle, a low water pressure gauge reading, or a weak or inconsistent stream from the "telltale" water outlet. If you notice any of these symptoms, inspect your impeller and pump housing immediately.
Does this kit fit both 2-stroke and 4-stroke engines?
Yes, this kit is specifically designed to fit a range of Johnson/Evinrude 3-cylinder outboards, which includes both 2-stroke models (1979-2001) and 4-stroke models (1998-Up). Always check the compatibility table to confirm your specific engine model and year before ordering.
When should I replace my water pump impeller?
For optimal reliability and to prevent overheating, marine mechanics recommend inspecting the impeller annually and replacing it every 1-2 years or every 100-200 hours of operation, whichever comes first, regardless of its visible condition.
Is the housing included or just the impeller?
This is a complete water pump rebuild kit. It includes the pump housing, impeller, wear plate, insert cartridge, gaskets, seals, O-rings, and mounting bolts—everything needed for a full replacement.
My old impeller key was a different color. Which one should I use?
This kit may include multiple impeller keys (e.g., black and white) to cover different production years. You should use the key that exactly matches the shape and size of the original key from your engine's driveshaft.
OEM vs. Aftermarket?
This listing is an aftermarket replacement (not OEM). Built to OEM-level specifications with comparable materials. Manufactured in an ISO 9002 facility, batch-inspected for consistency.
Shipping speed & cost
We ship worldwide quickly—typical transit 5–15 days. Standard shipping is free; expedited options appear at checkout where available.
Warranty & returns
Covered by a 1-year warranty against manufacturing defects under normal use. If issues arise, contact support with your order details. Returns are accepted within our standard window (unused & in original condition). See our policy page or reach out for instructions.
Safety & Important Info
- Verify images/specifications vs your original part. If anything differs—even if your model appears compatible—do not purchase.
- This is an aftermarket replacement, not an OEM component.
- Professional installation is recommended for safety and performance.
