Yamaha

68V-W0078-00 Water Pump Repair Kit 18-3523-1 with Housing for Yamaha F115 | SeaSierra

$25.74 $35.00
Shipping calculated at checkout.

Worry-free returns

You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.

Delivery and Shipping

Free standard shipping on all orders under 1 KG

If you have any questions, feel free to email us at sierrapartsi@gmail.com, and we’ll get back to you within 20–36 hours.

68V-W0078-00 Water Pump Repair Kit 1835231 with Housing for Yamaha F115 | SeaSierra

Product Details

  • SKU: 1835231
  • Weight: 1.6351
  • Dimensions (H x D x W): 5.4001 x 5.4001 x 5.8001 inches
  • Unit of Measure: EA
  • Item Status: A
  • UPC: 808282362140
  • Case Packaging: 1
  • Standard Packaging: 1
  • HSC Code: 841391
  • ECCN Code: 8413.91.9010
  • Condition: New with housing

Compatibility

This kit is compatible with the following Yamaha models:

  • F115: 2002 & Up
  • LF115: 2002 & Up

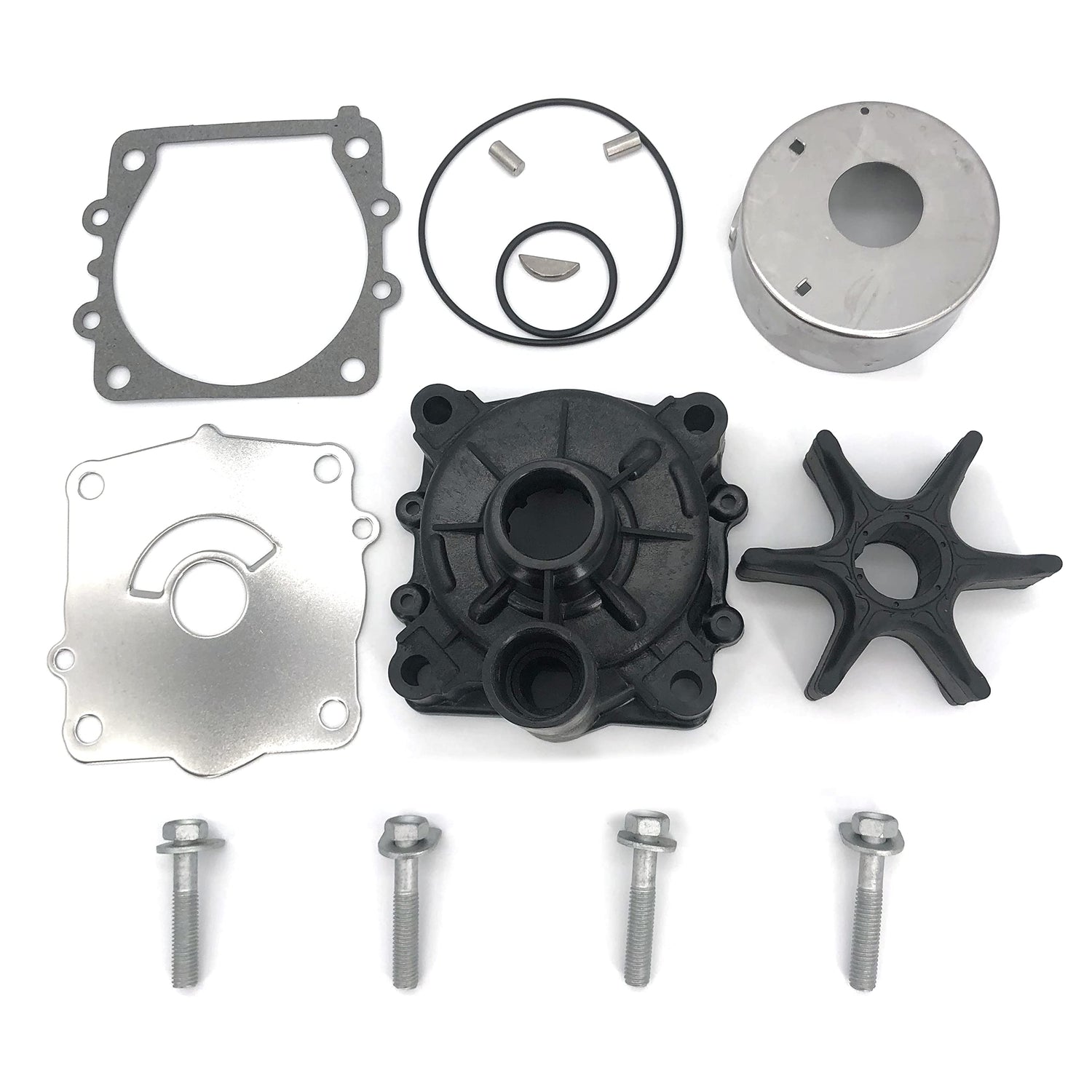

Kit Components

The package includes the following items:

  1. Impeller (18-3071, Part Number: 6E5-44352-01-00) - 1 qty

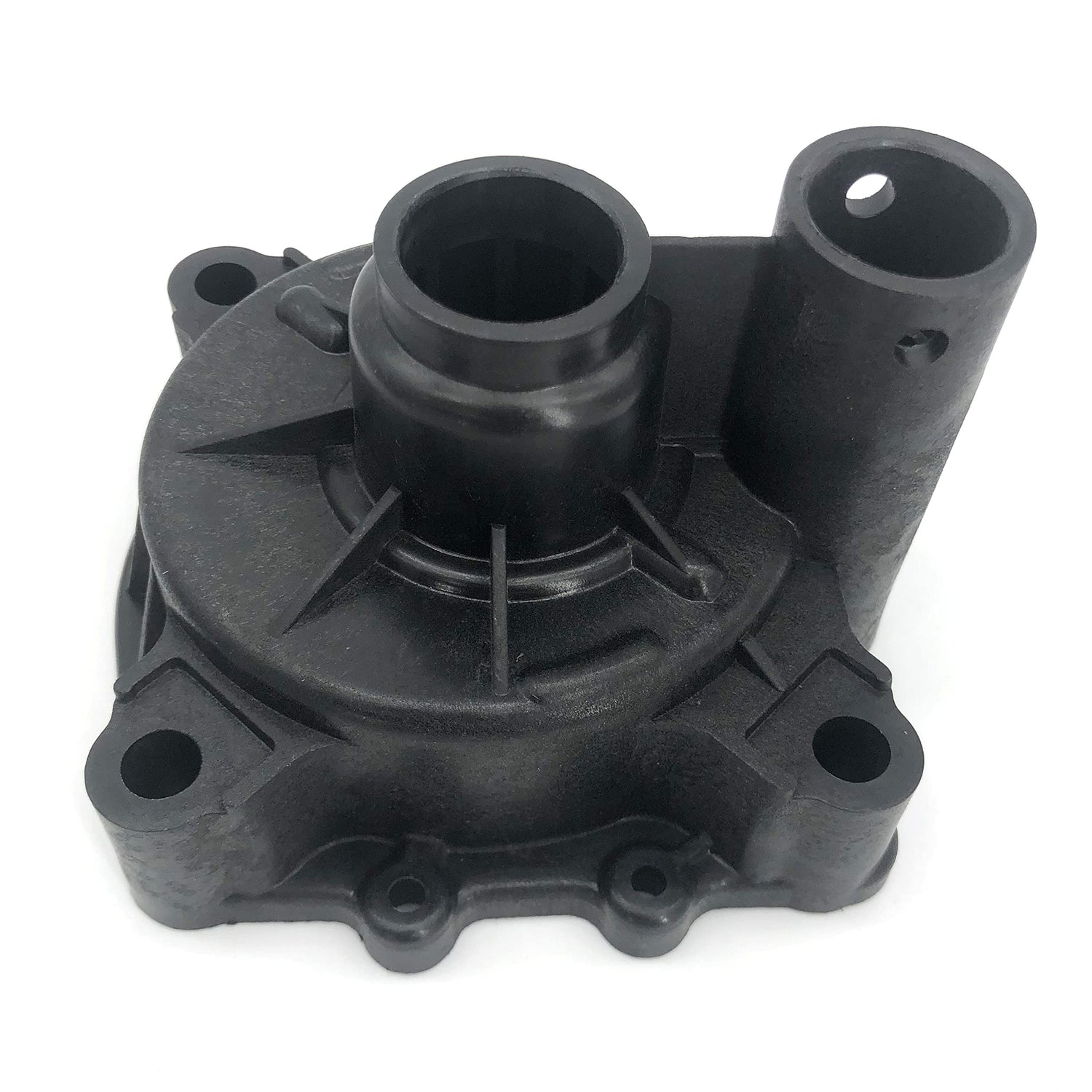

  2. Water Pump Housing (18-3173-1, Part Number: 61A-44311-01-00) - 1 qty

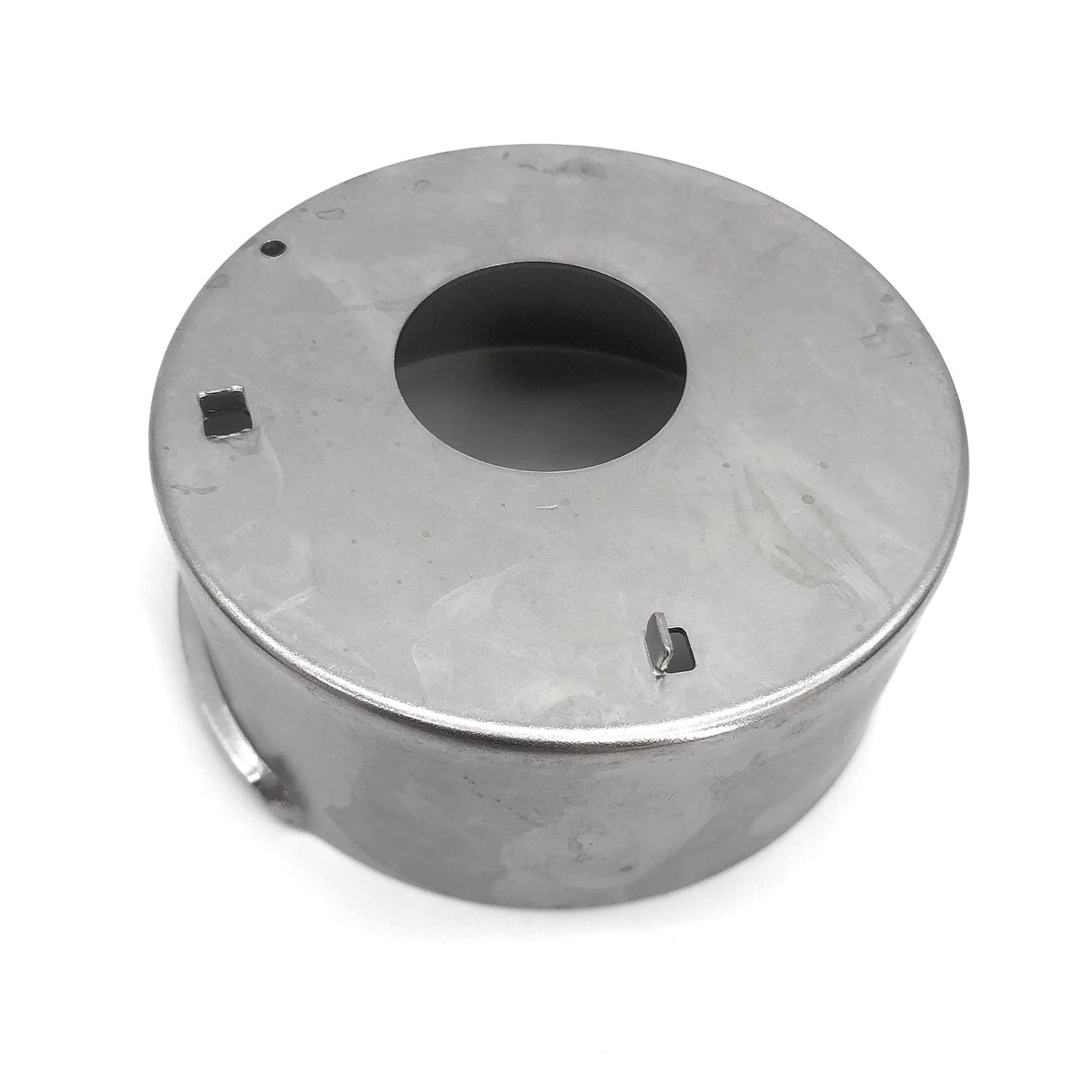

  3. Housing Insert Cup (18-3519, Part Number: 61A-44322-02-00) - 1 qty

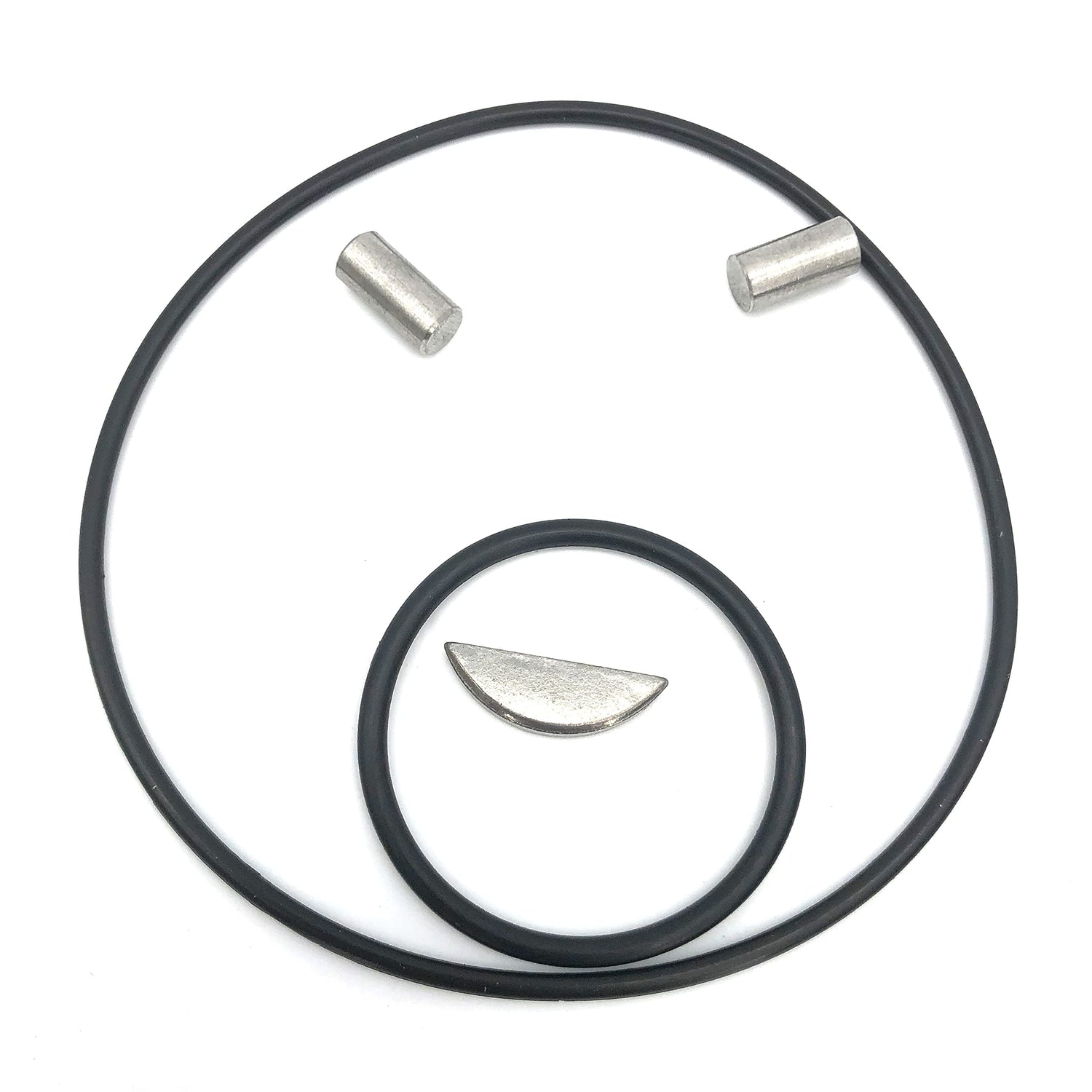

  4. Impeller Key (18-3302, Part Number: 90280-04M05-00) - 1 qty
  5. O-Ring (18-7485, Part Number: 93210-86M38-00) - 1 qty
  6. O-Ring (18-7483, Part Number: 93210-37M67-00) - 1 qty

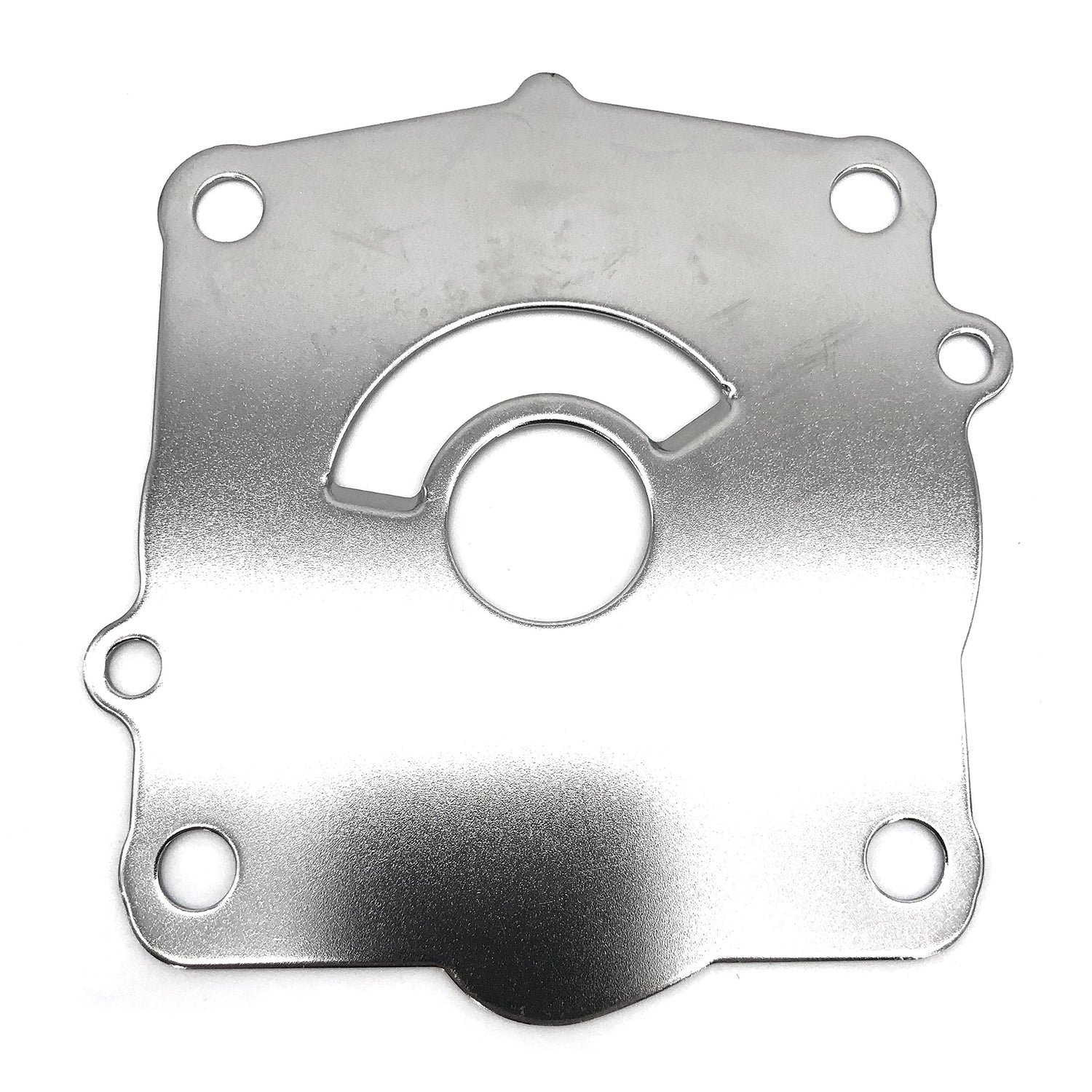

  7. Water Pump Base Outer Plate (18-3521, Part Number: 68V-44323-00-00) - 1 qty

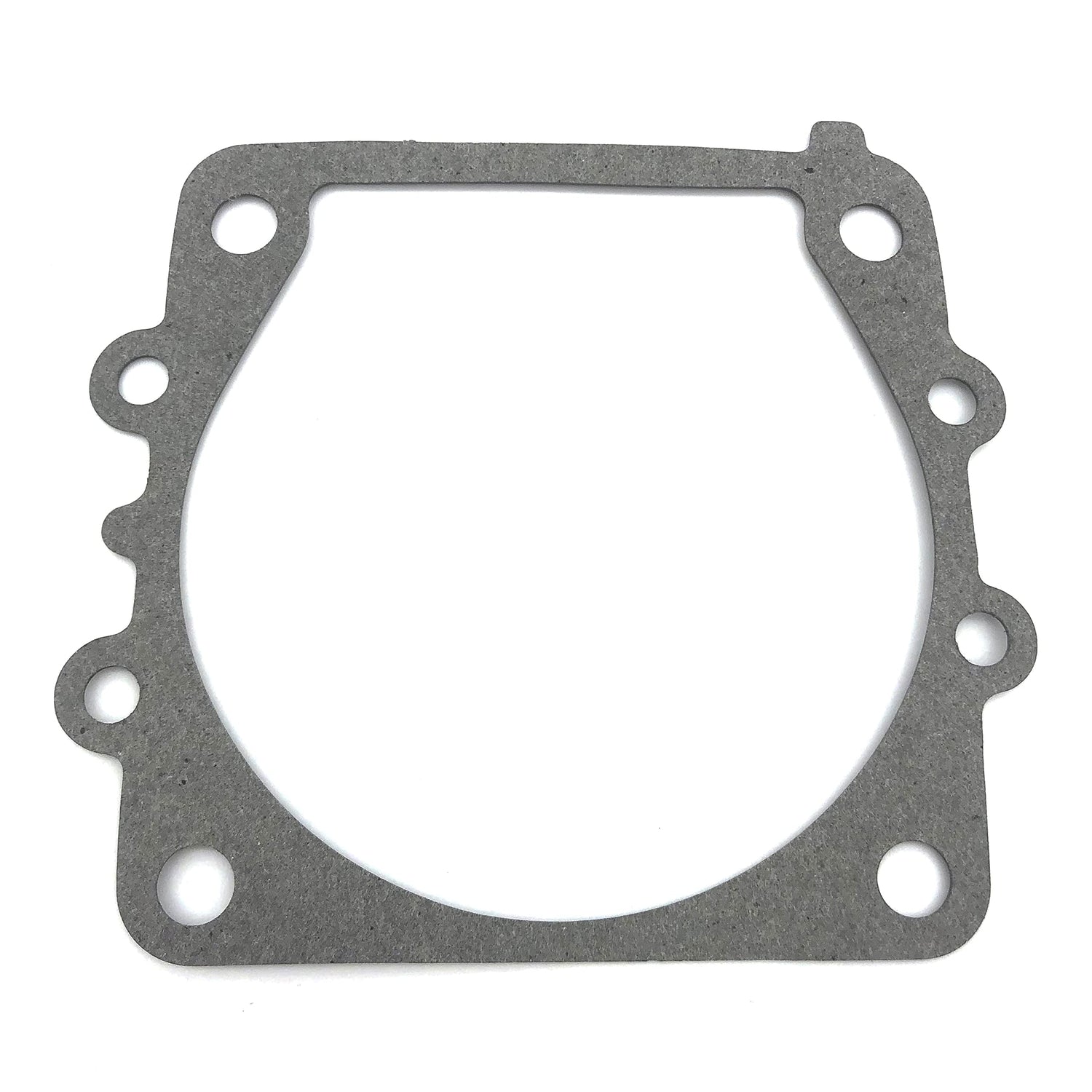

  8. Gasket, Water Pump (18-0244, Part Number: 6E5-44315-A0-00) - 2 qty

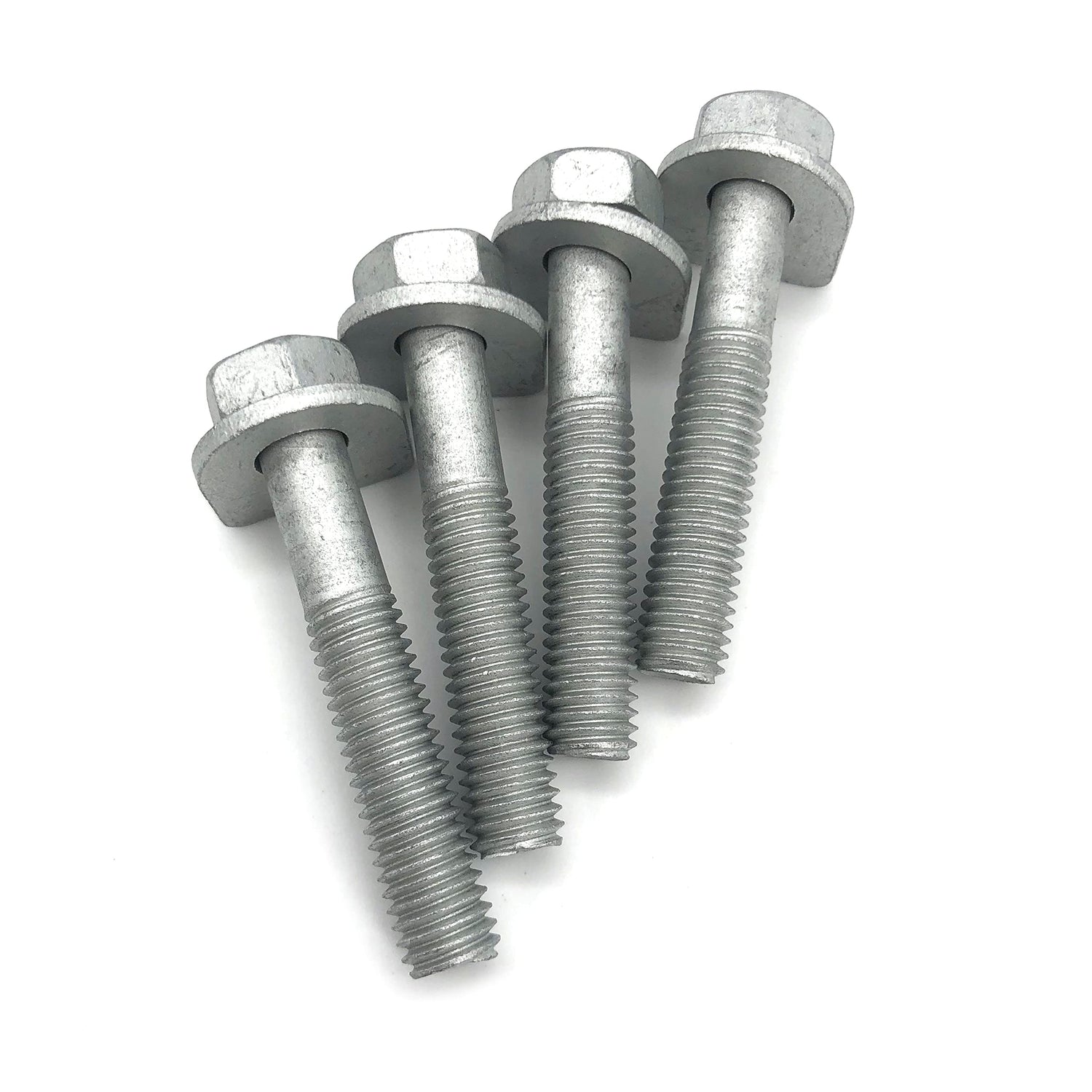

  9. Bolt (18-0256, Part Number: 97095-08045-00) - 4 qty
  10. Pin, Dowel (NSS, Part Number: 93606-12019-00) - 2 qty
  11. Washer, Bolt (NSS, Part Number: 90209-08M02-00) - 4 qty

Part Numbers and Replacements

  • Original Part Numbers: 68V-W0078-00-00, 61A-44311-01-00
  • Kit Number: 18-3523-1
  • Equivalent to: 18-3442 (but includes water pump housing)
  • Replaced Part Numbers: 68V-W0078-00, 61A-44311-01, 18-3523-1
